CT Analysis

Overview: Our CT Analysis services provide detailed internal and external inspections of components using advanced computed tomography technology. This allows for non-destructive testing and precise measurement of complex geometries, ensuring the highest level of accuracy and quality.

  • CT Scanning

    Using state-of-the-art CT scanners, we offer high-resolution 3D imaging of internal structures. This enables thorough inspection and analysis without damaging the components.

  • Porosity Analysis

    We perform detailed porosity analysis to detect and measure internal voids and defects within materials. Our analysis ensures the integrity and reliability of critical components.

  • Material Analysis

    Our material analysis services utilize CT scanning to evaluate the composition and structural integrity of materials. This includes detecting inclusions, measuring density variations, and assessing material homogeneity.

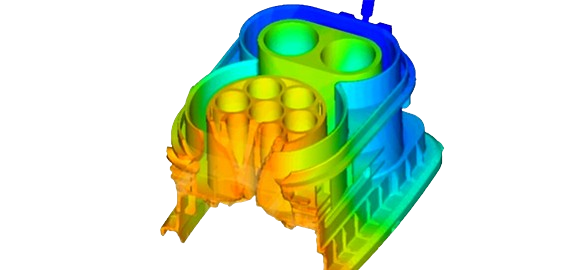

Actual Comparison / Part To Part Comparison

  • Gain valuable insights into internal structures with our CT analysis services, assisting in defect detection and material characterization.
  • demo
Thumb

Process Of CT Analysis

  • Initial Consultation: We begin by discussing your specific requirements, objectives, and timeline for the CT analysis project. This initial consultation allows us to understand your needs and tailor our approach accordingly.
  • Sample Preparation: Proper sample preparation is essential for obtaining reliable CT analysis results. Our experienced technicians carefully prepare the samples, ensuring they are clean, securely positioned, and suitable for scanning.

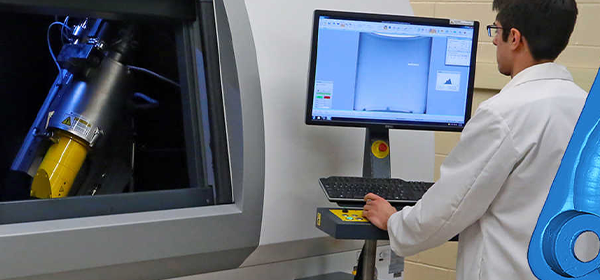

  • CT Scanning: Using state-of-the-art CT scanning equipment, we capture a series of X-ray images of the sample from multiple angles.
  • Image Reconstruction: Our specialized software reconstructs the raw X-ray data into a 3D volume image of the sample. This image allows for visualization and analysis of internal features, such as defects, voids, porosity, and material density variations.

Case Study

Aerospace Industry – Inspection of Composite Materials

Introduction :

In the aerospace industry, composite materials are widely used due to their high strength-to-weight ratio. Ensuring the integrity of these materials is crucial for safety and performance.

Thumb
The Problem Statement:

An aerospace company needed to inspect the internal structure of composite materials used in aircraft components for defects such as delaminations, voids, and fiber misalignment.

Solutions:

The company utilized CT analysis to perform non-destructive testing of the composite materials. The CT scans provided high-resolution, 3D images of the internal structure, allowing for detailed inspection of potential defects.

Impact:
  • The CT analysis enabled the detection of internal defects that were not visible through conventional inspection methods.
  • This led to improved quality control, enhanced material performance, and increased safety and reliability of the aircraft components.
